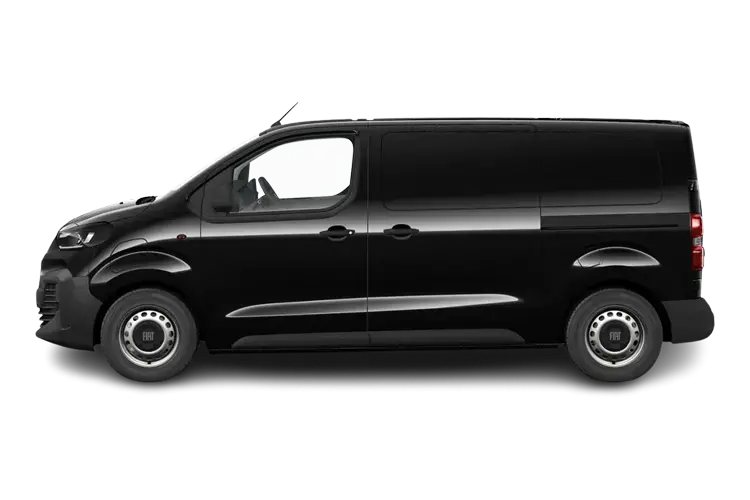

Fiat E-Scudo Crew Van L2 100kW 75kWh Crew Van Auto

Insurance Group 1:

N

Insurance Group 2:

N

Chassis Engine Number:

N

Vin/Frame No.:

N

Coin Series:

N

Coin Description:

N

Manufacturers Paintwork Guarantee - Years:

3

Man Corrosion Perforation Guarantee - Years:

8

Exhaust System:

N

Front Brakes:

VENTILATED DISCS

Rear Brakes:

DISCS

Hand Brake:

REAR

Battery Volts:

0

Battery AH:

0

Alternator Amps:

0

Front Suspension:

MACPHERSON STRUTS

Rear Suspension:

TWIN LEAF

Steering:

PAS RACK AND PINION

Clutch:

N

Any aspect of the vehicles safety cause concern?:

Coin Wheelbase Description Code:

N

Coin Wheelbase Name Code:

N

Coin Gross Vehicle Weight Code:

N

Coin Power Output Code:

N

Special Edition:

Special Order:

Based On ID:

0

Running Cost League Headings:

MEDIUM

This vehicle is classed as a car for VED purposes:

Ghost model for valuation purposes:

Service Interval Mileage:

24000

Service Interval Frequency - Months:

24

Timing Belt Interval Mileage:

0

Timing Belt Interval Frequency - Months:

0

NCAP Adult Occupant Protection %:

0

NCAP Child Occupant Protection %:

0

NCAP Overall Rating - Effective February 09:

0

NCAP Pedestrian Protection %:

0

NCAP Safety Assist %:

67

Badge Engine CC:

0

Badge Power:

136

Vehicle Homologation Class:

N1

Alternative Fuel Qualifying:

1

NCAP Overall Rating - LCV:

Gold

Relative Height:

H1

Relative Length:

L2

Minimum Kerbweight:

2176

Gross Vehicle Weight:

3100

Fuel Tank Capacity (Litres):

Max. Towing Weight - Braked:

1000

Max. Towing Weight - Unbraked:

750

Payload:

924

Load Space Volume:

4

Boot Capacity Saloons:

Luggage Capacity - 2nd Row Seats Up:

Luggage Capacity (Seats Down):

Luggage Capacity - 3rd Row Seats Up:

Luggage Capacity - 3rd Row Seats Down:

Luggage Capacity - 2nd Row Seats Removed:

Luggage Capacity - 3rd Row Seats Removed:

No. of Seats:

6

Luggage Capacity (Seats Up):

0

Plated Front Axle:

1500

Plated 2nd Axle:

1800

Gross Train Weight:

4100

Length:

5331

Width (excluding mirrors):

1924

Wheelbase:

3275

Width (including mirrors):

2204

Height:

1935

Load Length:

2365

Load Width:

1636

Load Height:

1397

Front Overhang:

904

Rear Overhang:

1152

Side Load Door Width:

935

Side Load Door Height:

1241

Lower Rear Door Width:

1282

Rear Door Height:

1220

Load Deck Height:

600

Load Space Width Between Wheel Arches:

1258

EC:

EC Urban:

EC Extra Urban:

EC Combined:

0 to 62:

14.3

Top Speed:

81

BHP:

136

PS:

1

0 to 60:

Engine Power KW:

100

Engine Power RPM:

5500

Engine Torque LBS.FT:

199

Engine Torque NM:

270

Engine Torque RPM:

3674

Engine Torque MKG:

27.5

Bore:

Stroke:

CC:

1

Cylinders:

0

Cylinder Layout:

N

Number of Valves:

0

Valve gear:

N

Fuel Type:

ELECTRIC

Catalytic Convertor:

Engine Layout:

N

Compression Ratio:

N

Gears:

1 SPEED

Engine Make:

N

Fuel Delivery:

N

Cooling System:

N

Automatic Transmission:

1

Manual Transmission:

Engine Codes:

N

Tyre Size Front:

215/65 R16

Tyre Size Rear:

215/65 R16

Tyre Size Spare:

TYRE REPAIR KIT

Wheel Type:

16" STEEL

Wheel Style:

N

Tyre Make:

Michelin

Plated 3rd Axle:

0

Plated 4th Axle:

0

Alloys?:

Space Saver?:

Automatic Clutch:

1

CO2:

0

Standard Euro Emissions:

N

Noise Level dB(A):

CO:

NOx:

HC+NOx:

Particles:

HC:

Battery Capacity in kWh:

75

Battery Charging Scenario 1 - Power Supply - kW:

1.8

Battery Charging Scenario 1 - Percentage Change:

0-100

Battery Charging Scenario 1 - Charge Time (Mins):

2205

Battery Charging Scenario 2 - Power Supply - kW:

7.4

Battery Charging Scenario 2 - Percentage Change:

0-100

Battery Charging Scenario 2 - Charge Time (Mins):

680

Battery Charging Scenario 3 - Power Supply - kW:

11

Battery Charging Scenario 3 - Percentage Change:

0-100

Battery Charging Scenario 3 - Charge Time (Mins):

450

Battery Charging Scenario 4 - Power Supply - kW:

100

Battery Charging Scenario 4 - Charge Time (Mins):

45

Battery Leased:

Battery Type:

Lithium-ion

Standard manufacturers Battery warranty - Mileage:

100000

Standard manufacturers Battery warranty - Years:

8

WLTP - EC (kWh/100km) - Comb - TEL:

22.4

WLTP - EC (kWh/100km) - Comb - TEH:

26.4

Coupler/Connector Type:

CCS Type 2

WLTP - Pure Electric Range (km) - City:

506

WLTP - Pure Electric Range (km) - City - TEH:

314

WLTP - Pure Electric Range (km) - City - TEL:

506

WLTP - Pure Electric Range (km) - Comb:

352

WLTP - Pure Electric Range (km) - Comb - TEH:

313

WLTP - Pure Electric Range (km) - Comb - TEL:

370

Battery Charging Scenario 4 - Percentage Change:

5-80

WLTP - EC (miles/kWh) - Comb - TEH:

2.4

WLTP - EC (miles/kWh) - Comb - TEL:

2.8

WLTP - Pure Electric Range (miles) - City:

314

WLTP - Pure Electric Range (miles) - City - TEH:

195

WLTP - Pure Electric Range (miles) - City - TEL:

314

WLTP - Pure Electric Range (miles) - Comb:

219

WLTP - Pure Electric Range (miles) - Comb - TEH:

194

WLTP - Pure Electric Range (miles) - Comb - TEL:

230

Battery Capacity % guaranteed under warranty:

70

Charging Port Location:

Left Side Front

Usable Battery Capacity:

69

Maximum Charging Rate - kW:

100

Emissions Test Cycle:

WLTP

RDE Certification Level:

N

ABS:

EBA:

Hill start assist:

Electronic brake force distribution (EBFD):

ESC:

Advanced emergency braking system:

Glazed full bulkhead:

Immobiliser:

Selective door locking:

Dashboard mounted central locking push button and auto locking above 7mph:

Remote control central deadlocking:

Rear parking distance sensor:

Lane keeping assist:

E-Remote - Remote check of battery level, programming and charge management, Pre-conditioning of vehicle temperature:

Manual air conditioning:

Air recirculation facility:

Chilled glovebox facility:

Front electric windows with one touch facility:

Laminated acoustic windscreen:

Rain sensitive windscreen wipers:

2nd row glazed with dark tinted acoustic fixed left and right side windows:

Driver's seat armrest:

Ergonomic 6-way adjustable driver's seat with reach, rake, height and lumbar adjustment:

Three individual contoured rear seats with adjustable headrest and 2 armrest:

Removable storage compartment under left and center seats with area for long payload under right seat:

Audio controls mounted on steering wheel:

Two speakers and two tweeters:

Flexible short antenna (200mm):

Multi-function trip computer:

TPMS (Tyre pressure monitoring system):

10" digital instrumental cluster:

Connectivity via BTA with RCE:

Electrically adjustable + heated door mirrors:

High beam assist:

Automatic headlamps on/off:

Halogen headlamp with integrated daytime running lights:

12V socket in cabin:

Fabric upholstery:

12V socket in load area (LHS at bottom of D-pillar):

USB socket in cabin (dashboard):

2x USB socket in B-pillar:

Overhead console with 1 ceiling lamp (dome type and 3 lamps):

TPO plastic floor in 1st row and painted sheet metal in 2nd row:

Interior roof trim in row 1 and no grab handle in row 2:

Intelligent Speed Assist:

Steering wheel paddles for regenerative braking selection - light, medium and strong:

Driver Attention Alert, level - 3:

Electronic power steering (EPS):

Offside and nearside sliding side access doors:

Twin solid rear doors:

Driver and passenger airbags:

Height adjustable lap and diagonal inertia reel front seatbelts:

Acoustic vehicle alerting system with audible outside:

Automatic unlocking system in case of crash:

Side airbags 1st row driver and passenger thorax in the seats + curtain for the head:

Passenger airbag can be deactivated manually:

Fixed floor mounted load restraint lashing eyes x6:

Mistral black dashboard trim with liquid paladium center decor:

Auto shifting by e-Toggle and shift paddles including in steering wheel:

Michelin Agilis 3 tyres - 215/65 R16C:

Black front and rear bumpers, side protection, sliding door rail cover and exterior door handles:
