Toyota Corolla Estate 1.8 Hybrid GR Sport 5dr CVT

Minimum Kerbweight:

1400

Gross Vehicle Weight:

1885

Fuel Tank Capacity (Litres):

43

Max. Towing Weight - Braked:

750

Max. Towing Weight - Unbraked:

450

Max. Loading Weight:

485

Luggage Capacity (Seats Up):

596

No. of Seats:

5

Max. Roof Load:

55

Luggage Capacity (Seats Down):

1606

Length:

4650

Width:

1790

Wheelbase:

2700

Height:

1460

EC Directive 1999/100/EC Applies:

WLTP - MPG - Low:

68.9

WLTP - MPG - Medium:

76.4

WLTP - MPG - High:

67.3

WLTP - MPG - Extra High:

47.1

WLTP - MPG - Comb:

60.1

WLTP - MPG - Low - TEL:

68.9

WLTP - MPG - Low - TEH:

67.6

WLTP - MPG - Medium - TEL:

76.4

WLTP - MPG - Medium - TEH:

73.1

WLTP - MPG - High - TEL:

67.3

WLTP - MPG - High - TEH:

65.2

WLTP - MPG - Extra High - TEL:

47.1

WLTP - MPG - Extra High - TEH:

45

WLTP - MPG - Comb - TEL:

60.1

WLTP - MPG - Comb - TEH:

57.6

WLTP - FC (l/100km) - Low:

4.1

WLTP - FC (l/100km) - Medium:

3.7

WLTP - FC (l/100km) - High:

4.2

WLTP - FC (l/100km) - Extra High:

6

WLTP - FC (l/100km) - Comb:

4.7

WLTP - FC (l/100km) - Low - TEL:

4.1

WLTP - FC (l/100km) - Low - TEH:

4.2

WLTP - FC (l/100km) - Medium - TEL:

3.7

WLTP - FC (l/100km) - Medium - TEH:

3.9

WLTP - FC (l/100km) - High - TEL:

4.2

WLTP - FC (l/100km) - High - TEH:

4.3

WLTP - FC (l/100km) - Extra High - TEL:

6

WLTP - FC (l/100km) - Extra High - TEH:

6.3

WLTP - FC (l/100km) - Comb - TEL:

4.7

WLTP - FC (l/100km) - Comb - TEH:

4.9

0 to 62 mph (secs):

9.4

Top Speed:

111

Engine Power - BHP:

140

Engine Power - PS:

1

0 to 60 mph (secs):

Engine Power - KW:

103

Engine Power - RPM:

5200

Engine Torque - LBS.FT:

105

Engine Torque - NM:

142

Engine Torque - RPM:

3600

Engine Torque - MKG:

14.5

Cylinders - Bore (mm):

80.5

Cylinders - Stroke (mm):

88.3

CC:

1798

Cylinders:

4

Cylinder Layout:

IN-LINE

Number of Valves:

16

Camshaft:

DOHC

Fuel Delivery:

MULTI POINT FUEL INJECTION

Catalytic Convertor:

1

Engine Layout:

FRONT TRANSVERSE

Compression Ratio:

13.0:1

Transmission:

AUTO

Gears:

1 SPEED

Engine Code:

2ZR-FXE

Coin Series:

GR Sport

Coin Description:

Hybrid

Standard manufacturers warranty - Years:

3

Standard manufacturers warranty - Mileage:

60000

Safety Concerns?:

Special Edition:

Special Order:

Based On ID:

0

Insurance Group 1 - 50 Effective January 07:

17E

Service Interval Mileage:

10000

Service Interval Frequency - Months:

12

NCAP Adult Occupant Protection %:

0

NCAP Child Occupant Protection %:

0

NCAP Pedestrian Protection %:

0

NCAP Safety Assist %:

0

NCAP Overall Rating - Effective February 09:

0

Badge Power:

140

Badge Engine CC:

1.8

Vehicle Homologation Class:

M1

Generation Mark:

11

Alternative Fuel Qualifying:

1

Tyre Size Front:

225/40 R18

Tyre Size Rear:

225/40 R18

Tyre Size Spare:

TYRE REPAIR KIT

Wheel Type:

18" ALLOY

Wheel Style:

10 SPOKE

Alloys?:

1

Space Saver?:

Standard Euro Emissions:

EURO 6

Noise Level dB(A):

67

CO:

0.096

HC:

0.015

NOx:

0.004

HC+NOx:

0.013

Particles:

WLTP - CO2 (g/km) - Low:

91

WLTP - CO2 (g/km) - Medium:

84

WLTP - CO2 (g/km) - High:

94

WLTP - CO2 (g/km) - Extra High:

136

WLTP - CO2 (g/km) - Comb:

107

WLTP - CO2 (g/km) - Low - TEL:

91

WLTP - CO2 (g/km) - Low - TEH:

94

WLTP - CO2 (g/km) - Medium - TEL:

84

WLTP - CO2 (g/km) - Medium - TEH:

87

WLTP - CO2 (g/km) - High - TEL:

94

WLTP - CO2 (g/km) - High - TEH:

98

WLTP - CO2 (g/km) - Extra High - TEL:

136

WLTP - CO2 (g/km) - Extra High - TEH:

142

WLTP - CO2 (g/km) - Comb - TEH:

111

WLTP - CO2 (g/km) - Comb - TEL:

107

Battery Capacity in kWh:

1.8

Battery Type:

Lithium-ion

Emissions Test Cycle:

WLTP

RDE Certification Level:

RDE 2

Black roof rails:

Body colour outer rocker panels:

Body colour rear roof spoiler:

Single exhaust tailpipe:

Shark fin antenna:

Black door moulding:

Body coloured outside door handles:

Gloss black diffuser:

Body coloured rear bumpers:

Unique lower skirt:

Black toyota logo in front:

Tailgate release with push button:

Gloss black upper front grille:

Rear side wing doors:

Power tailgate with kick sensor:

New grille pattern:

GR Sport exclusive under guard:

Height memory opening on power tailgate:

Remote tailgate release on key:

Tailgate remote release in cabin:

Satin chrome inserts on rear passenger air vents:

Rocker and door lower moulding:

Satin silver front spoiler:

Satin chrome insert on front door assist grips:

Front and rear fender high liner:

Fuel caution label:

Paint protective wrap guard:

GR SPORT front bumper:

Dark chrome meshed front grille:

Black surround on lower front grill:

GR SPORT Badging on tailgate:

A - Pillar garnish:

B - Pillar in Black:

Lower back and back door plated garnish:

Black side air vents:

Front sports seats:

Heated front seats:

Front head restraints:

3 rear height adjustable headrests:

60/40 split folding rear seat:

3 seat bench in 2nd row:

Whiplash Injury Lessening (WIL) feature (active headrest) for seats:

Manual height adjustable for driver and front passenger seat:

Power adjustable lumbar support on driver seat:

Manually sliding driver seat:

Manually sliding front passenger seat:

ISOFIX child restraint system:

Front passenger seat:

Remote controlled Toyota easy flat system:

Forward tilting 2nd row seats:

Remote central locking + deadlocks:

Power door locks:

Digital key:

Acoustic vehicle alert system (AVAS):

Alarm with motion sensor and immobilizer:

Traction control:

Brake assist function:

HAC-Hill-start Assist Control:

Electronic parking brake:

Downhill Assist Control (DAC):

Anti lock braking system + Electronic brake force distribution:

Emergency brake light signal (EBS):

Toyota safety sense with over the air updates:

15" Front brakes:

Catalytic converter:

Gasoline particulate filter:

Electric accelerator pedal:

Front and rear door pockets:

Front and rear bottle holders:

Rear armrest with 2 cupholders:

12v power outlet - front:

12v power outlet - luggage side:

Center console cover:

Driver and passenger seatback pockets:

Voice recognition switch on steering wheel:

Rear overhead assist grips:

Front overhead assist grips:

Rear passenger coat hooks (2):

Adaptive cruise control (ACC) switch on steering wheel:

Adjustable speed limiter switch on steering wheel:

Black front door assist grips:

Fabric/synthetic leather upholstery:

Satin chrome inside door handles:

Boot underfloor storage:

Leather gear shift with satin chrome on gear shift console:

Power window switches with satin chrome inserts:

Slow opening glovebox with lights:

Retractable tonneau cover with luggage partition net:

Side storage in boot:

PVC door armrest:

Manual tilt and telescopic steering wheel:

Front sliding synthetic leather armrest:

Black armrest on centre console box:

Satin chrome surround on speedometer:

Red stitching on gear shift:

Satin chrome surround on heater control panel:

4 tie down hooks in luggage compartment:

2 Shopping bag hooks in luggage compartment:

USB charger front:

Front console box with stitching:

Dual mike in roof:

Aluminium door scuff plates with GR sport batch:

Black out with door sash and wheel house:

Satin chrome inserts on centre air vents:

3 spoke perforated leather steering wheel with satin insert/red stitching + gear knob:

Gloss black gear shift console:

Regulation compliancy wvta label +:

Soft touch front and rear door trim:

Satin chrome surround on multimedia:

Audio, multi-info and telephone switches on steering wheel:

Dual sided boot floor:

Dual level deckboard:

Speedometer:

Hybrid system indicator:

Key reminder warning:

EV drive indicator:

10.5" Multimedia display screen:

Smartphone integration with Apple CarPlay and wired android auto:

Colour multi information display with 3D:

12.3" multi information screen:

Toyota smart connect multimedia system:

Clock audio and meter:

Gear position indicator with meter:

6 speakers:

DAB Digital radio:

USB connector:

Toyota touch 2 with go navigation:

Smart voice assist/ Voice recognition:

Pollen filter:

Clean air filter:

Rear air vents:

Dual zone automatic air conditioning with ECO mode switch:

Nanoe-X air purifier:

Remote air conditioning:

Refrigerant correspondent hf01234f:

Vehicle Stability Control (VSC):

MacPherson front suspension:

Double wishbone rear suspension:

Front and rear stabilizers:

Auto dimming rear view mirror:

Gloss black door mirrors:

Reverse tilting door mirrors:

Power adjustable heated door mirrors:

Turning signal integrated indicators in door mirrors:

Automatic folding mirrors:

Automatic light control system:

LED boot light:

Illuminated entry system in room lamp:

Driver and front passenger personal light:

Rear passenger personal lights:

White ambient lighting on open tray and front cup holder:

Power front windows:

Power rear windows:

Rear window wiper:

Rain sensing wipers:

Auto up and down function on all power windows:

Anti-jam protection on power windows:

Time adjustment on intermittent wiper:

Rear window defogger:

UV-filter on driver and passenger windows:

Noise reduction layer on front windows:

Noise reduction layer on windscreen:

Rear privacy windows:

20% privacy rear side and quarter glass:

Ethanol washer fluid:

Seatbelt pretensioners and force limiters:

Child locks on rear doors:

3x3 point rear seatbelts:

Front seatbelt reminder:

Front passenger airbag on/off switch:

Rear seat belt reminder:

Tyre pressure warning system:

Supplemental restraint system (SRS) 7 airbags - dual driver, dual side curtain, side impact and driver knee airbags:

Occupant detection:

Adjustable driver and front passenger seat belt extender to top anchor point:

Rear seat reminder alert:

Follow me home headlights:

LED daytime running lights:

LED front fog lights:

Auto headlights:

LED rear combi lights with LED lightguide:

Light remind warning with auto cut off:

LED High mounted stop light:

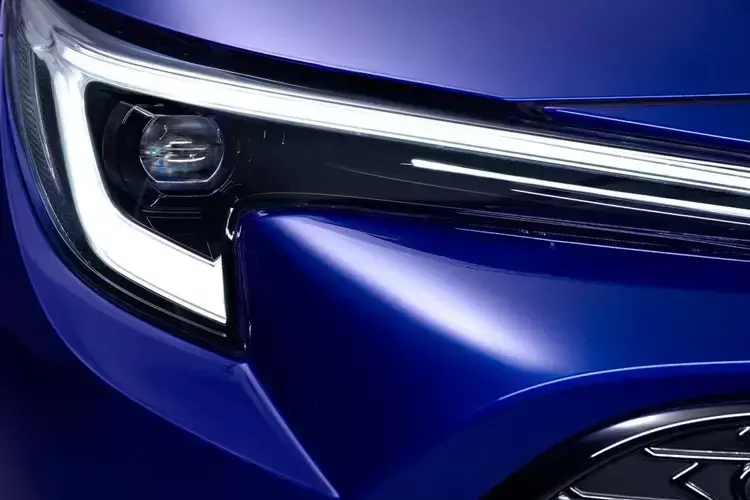

LED dual beam projector headlights:

Manual headlight levelling system:

Adaptive automatic high beam system (AHS):

RHD aimed headlight levelling system:

Tyre repair kit:

Bluetooth telephone connectivity:

E-call:

Intelligent parking assist:

Front and rear parking sensors:

Adjustable speed limiter:

Lane departure alert - LDA:

Road sign assist - RSA:

Lane trace assist:

Intelligent adaptive cruise control:

Lane Departure Alert (LDA) switch on steering wheel:

Memory on adjustable speed limiter:

Proactive driving assist (PDA):

Driver attention assist:

Toyota remote services:

Drive mode select (Eco, Normal):

MyT connected services:

Rear view camera with guidelines:

Pre collision system with Acceleration Suppression,Emergency Steering Assist,pedestrian ,Oncoming vehicle and Intersection detection:

Satin chrome dashboard inserts:

Soft touch texture on upper dashboard:

Stitching on lower dashboard:

GR Sport interior and exterior styling:

Electrically assisted power steering:

Wireless charger:

Connected car functionality upgrade, tracker, remote status and e-care:

Smart entry and push button start with GR Logo:

Driver and passenger sun visor with mirror and light:

18" black machined face 10 spoke alloy wheels:

Front and rear GR Sports floor mats:

Star shaped centre wheel caps with black surrounds:

Front differential 2.834:
