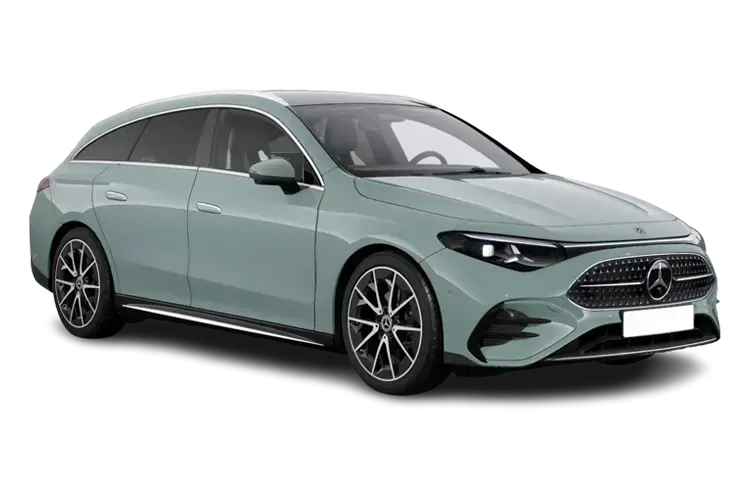

Mercedes-Benz CLA Shooting Brake CLA 200 Sport 5dr Auto

Minimum Kerbweight:

1730

Gross Vehicle Weight:

2155

Fuel Tank Capacity (Litres):

43

Max. Towing Weight - Braked:

1800

Max. Towing Weight - Unbraked:

750

Max. Loading Weight:

425

Luggage Capacity (Seats Up):

455

No. of Seats:

5

Max. Roof Load:

75

Luggage Capacity (Seats Down):

1295

Turning Circle - Kerb to Kerb:

11.2

Length:

4723

Width:

1855

Wheelbase:

2790

Width (including mirrors):

2021

Height:

1452

EC Directive 1999/100/EC Applies:

WLTP - MPG - Low:

38.7

WLTP - MPG - Medium:

60.1

WLTP - MPG - High:

64.2

WLTP - MPG - Extra High:

55.4

WLTP - MPG - Comb:

55.4

WLTP - MPG - Low - TEL:

38.7

WLTP - MPG - Low - TEH:

38.7

WLTP - MPG - Medium - TEL:

60.1

WLTP - MPG - Medium - TEH:

58.9

WLTP - MPG - High - TEL:

64.2

WLTP - MPG - High - TEH:

62.8

WLTP - MPG - Extra High - TEL:

55.4

WLTP - MPG - Extra High - TEH:

54.3

WLTP - MPG - Comb - TEL:

55.4

WLTP - MPG - Comb - TEH:

54.3

WLTP - FC (l/100km) - Low:

7.3

WLTP - FC (l/100km) - Medium:

4.7

WLTP - FC (l/100km) - High:

4.4

WLTP - FC (l/100km) - Extra High:

5.1

WLTP - FC (l/100km) - Comb:

5.1

WLTP - FC (l/100km) - Low - TEL:

7.3

WLTP - FC (l/100km) - Low - TEH:

7.3

WLTP - FC (l/100km) - Medium - TEL:

4.7

WLTP - FC (l/100km) - Medium - TEH:

4.8

WLTP - FC (l/100km) - High - TEL:

4.4

WLTP - FC (l/100km) - High - TEH:

4.5

WLTP - FC (l/100km) - Extra High - TEL:

5.1

WLTP - FC (l/100km) - Extra High - TEH:

5.2

WLTP - FC (l/100km) - Comb - TEL:

5.1

WLTP - FC (l/100km) - Comb - TEH:

5.2

0 to 62 mph (secs):

8

Top Speed:

144

Engine Power - BHP:

163

Engine Power - PS:

1

0 to 60 mph (secs):

Engine Power - KW:

120

Engine Power - RPM:

5500

Engine Torque - LBS.FT:

184

Engine Torque - NM:

250

Engine Torque - RPM:

1750

Engine Torque - MKG:

25.5

Cylinders - Bore (mm):

75

Cylinders - Stroke (mm):

84.8

CC:

1499

Cylinders:

4

Cylinder Layout:

IN-LINE

Number of Valves:

16

Camshaft:

DOHC

Fuel Delivery:

TURBO DIRECT INJECTION

Catalytic Convertor:

1

Engine Layout:

FRONT TRANSVERSE

Transmission:

SEMI-AUTO

Gears:

8 SPEED

Coin Series:

Sport

Coin Description:

N

Standard manufacturers warranty - Years:

3

Standard manufacturers warranty - Mileage:

999999

Manufacturers Paintwork Guarantee - Years:

3

Man Corrosion Perforation Guarantee - Years:

30

Safety Concerns?:

Special Edition:

Special Order:

Based On ID:

0

Insurance Group 1 - 50 Effective January 07:

30E

Service Interval Mileage:

15500

Service Interval Frequency - Months:

12

Badge Power:

163

Badge Engine CC:

1.5

Vehicle Homologation Class:

M1

Generation Mark:

3

Alternative Fuel Qualifying:

1

Tyre Size Front:

255/45 R18

Tyre Size Rear:

255/45 R18

Tyre Size Spare:

TYRE REPAIR KIT

Wheel Type:

18" ALLOY

Wheel Style:

5 TWIN SPOKE

Alloys?:

1

Space Saver?:

Standard Emissions:

EURO 6

CO:

0.189

HC:

0.006

NOx:

0.002

HC+NOx:

Particles:

0.0001

WLTP - CO2 (g/km) - Comb:

116

WLTP - CO2 (g/km) - Comb - TEH:

118

WLTP - CO2 (g/km) - Comb - TEL:

116

Emissions Test Cycle:

WLTP

RDE Certification Level:

RDE 2

Comfort seats:

Heated front seats:

Rear head restraints:

Front head restraints:

4-way electric lumbar support:

3 seat bench in 2nd row:

Automatic child seat recognition sensor:

40:20:40 split folding rear seat backrests:

Two outer rear seat isofix and top tether child seat fixing points:

Single front passenger seat:

Fully adjustable front seats:

Electric folding door mirrors:

Auto dimming rear view mirror:

Electrically adjustable and heated door mirrors with integrated LED indicators:

Rear wiper:

Front and rear electric windows:

Heated glass rear windscreen + timer control:

Rain sensing windscreen wipers with two sensitivity settings:

Outside temperature gauge:

Service indicator (ASSYST):

Hard-disk navigation:

Lamp failure indicator:

Mercedes me connect including emergency call system, accident recovery, breakdown and maintenance management:

Fluid level warning indicator for fuel, oil, coolant and washer fluid:

Trip computer in multifunction display with current consumption indicator:

Pre-installation of private car share:

14" Centre media touchscreen display:

Supercomputer MB OS:

Digital owners manual in English:

10.25" driver display with 2 individually configurable contexts:

Body colour door handles:

Fixed panoramic glass roof:

Two chrome plated tailpipe trim elements:

Rear side wing doors:

Sport body styling:

Roof railing:

Front passenger seat occupancy sensor:

Black seat belts:

Warning triangle and first aid kit:

Tyre pressure monitoring system:

Drivers knee airbag:

Front and rear seatbelt reminder:

Crash responsive emergency lighting:

Automatic front passenger airbag deactivation:

Exit warning:

Three point rear seat belts:

Childproof locks manually operated for rear doors and electrically operated for rear power windows:

Driver and front passenger head and sidebags:

Active bonnet pedestrain safety measure which detects an impact and raises bonnet by 65mm:

Dual stage driver and front passenger airbags:

Front centre airbag:

Rear seatbelt status indicator in the instrument display:

Evasive steering function:

Emergency brake assist:

ESP curve dynamic assist:

Adaptive brake assist with hold function and hill start assist:

Electric parking brake:

Anti lock braking system (ABS) with brake assist:

Electronic stability programme with acceleration skid control:

Brake pad wear warning indicator:

Radar-based recuperation:

Rear fog lamp:

Adaptive brake lights:

LED tail lamp:

Headlamp assist automatic headlamp activation:

High level LED third brake light:

LED high performance headlamps with integrated LED daytime running lights and adaptive highbeam assist:

Tailgate:

ECO start/stop function:

Car wash mode:

Facial recognition system:

Eye tracking technology:

MBUX standard including remote functions and voice assistant:

Black roof lining:

Twin front cupholders:

Brushed stainless steel sports pedals with rubber studs:

Front centre armrest with stowage:

Manually height and reach adjustable steering column:

Luggage net on driver/front passenger seat backrest:

Fluorescent jacket:

Centre console with 2 levels:

Anti-slip boot mat in black:

Artico man-made leather/Sortland fabric upholstery:

455 litre boot volume:

Front panel with illuminated Mercedes-Benz pattern:

3 spoke leather multifuntion sports steering wheel with control buttons on left/right:

Lane keep assist:

Attention assist - Monitors steering behaviour and long journey fatigue:

DYNAMIC SELECT with a choice of driving modes (ECO, Comfort, Sport and Individual):

Acoustic presence indicator:

Mercedes me remote services:

Selfie and video camera:

Direct-rack steer system:

MBUX Navigation system:

Digital extra MBUX smartphone integration with Android Auto and Apple CarPlay:

Adaptive distance assist DISTRONIC with speed limit function, automatic restart function, route based speed adjustment and speed limit assist:

Drive parking assist with reversing camera, front and rear parking sensors:

Manoeuvre assistant - Obstacles detection, cross traffic warning and drive away assist:

Blind spot assist and blind spot assist plus:

Summer tyres:

Velour floor mats:

Remote central locking and crash sensor with emergency opening function:

Alarm system with immobiliser and interior protection -Thatcham category 1:

KEYLESS-GO starting function:

Guard 360 degree vehicle protection - Anti theft alarm system:

DAB digital radio tuner:

Pre installation for Mercedes Benz Link:

MBUX multimedia system:

Mercedes Benz sound system (125 W) with 8 speakers:

2 rear USB-C ports on the centre armrest, fast charging 100W:

2 USB-C ports in the storage compartment under the armrest of the centre console (Fast charging 100W + Data transfer):

Radio aerial integrated into front and rear windshields:

Hey Mercedes Voice activation:

Bluetooth connection:

Air condition air vents with surround in silver chrome:

THERMATIC single zone automatic climate control:

Rear axle multi-link:

8G eDCT dual clutch transmission:

Tirefit tyre sealant kit:

Comfort suspension with ride height lowering:

Anthracite anodised-look trim:

18" 5 twin spoke light alloy wheels aerodynamically optimised painted in high gloss black with a high sheen finish:

Interior lighting pack - CLA Saloon/Shooting brake:
